| CAS No.: | 7085-85-0 | Other Names: | insulation foam spray |
| MF: | Mixture | EINECS No.: | 230-391-5 |
| Place of Origin: | Shanghai, China | Classification: | Hot Melt Adhesives |
| Main Raw Material: | POLYURETHANE | Usage: | Construction, Fiber & Garment, Footwear & Leather, Packing, Transportation, Woodworking, polyurethane foam |
| Brand Name: | SHUODE | Model Number: | FR |
| Type: | fire retardant pu foam | Item name: | polyurethane spray foam |
| Cuttable time (30mm diameter (minute): | Approx.60 | Fire Retardant Factor: | B2 |
| Optimal Application Temp.(℃): | +5~+35 | Min. Application Temp.(℃): | +18~+25 |
| Tensile Strength(Aluminum Plate)(KPA): | 120 | Temp. Resistance(Long Term)(℃): | -30~+80 |
| Temp. Resistance(Short Term)(℃): | -40~+110 | Expansion Multiple(time): | Max.80 |
| Density(KG/M3): | 19±6 |
Product Introduction
| Iteam | Stardand | Result |
|---|---|---|
| Base | Polyurethane | Pass |
| Consistency | Stable Foam | Pass |
| Curing System | Moisture-cure | Pass |
| Tack-Free Time (min) | 8~15 | Pass |
| Drying Time | Dust-free after 20-25 min | Pass |
| Cutting Time (hour) | 1 (+25℃) 8~12 (-10℃) |
Pass |
| Yield (L) | 50 | Pass |
| Shrink | None | Pass |
| Post Expansion | None | Pass |
| Cellular Structure | 70~80% closed cells | Pass |
| Specific Gravity (kg/m³) | 20-25 | Pass |
| Temperature Resistance | -40℃~+80℃ | Pass |
| Application Temperature Range | -5℃~+35℃ | Pass |
| Color | Champagne | Pass |
| Fire Class (DIN 4102 ) | B2 | Pass |
| Insulation Factor (Mw/m.k) | <20 | Pass |
| Compressive Strength (kPa) | >180 | Pass |
| Tensile Strength (kPa) | >30 (10%) | Pass |
| Adhesive Strengh(kPa) | >120 | Pass |
| Water Absorption (ML) | 0.3~8(no epidermis) <0.1(with epidermis) |
Pass |
| CONCLISON:Shuode Pu Foam FR Grade Confirmed ISO9001. | ||
Polyurethane Foam Gun Stype

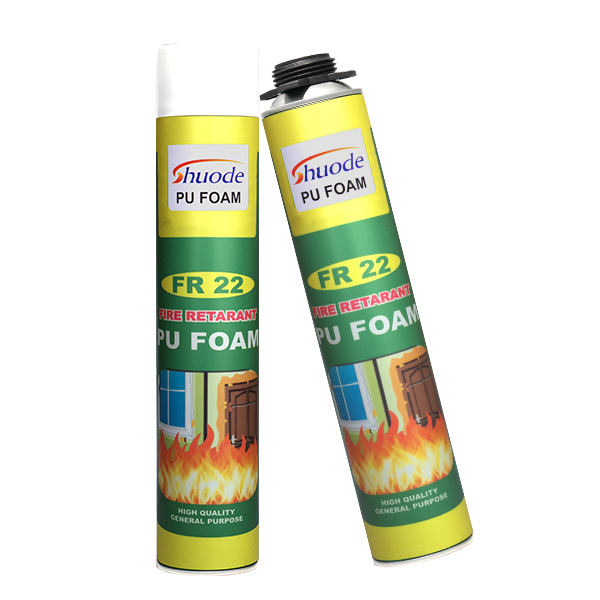

Shuode FR series polyurethane foam is B2 fireproof grade.
Regular polyurethane styrofoam will continue to burn, but flame retardants will not ignite at all.
Adhesive Compressive>250KPA
It can bear 70KG
Small Bubble,No Oil Leakage,No Powder
Shuode’s factory covers an area of 50,000 square meters, with a workshop area of 40,000 square meters. Shuode is one of the earliest manufacturers of polyurethane foam in China. We have more than 20 years of experience in the field of polyurethane foams, and a variety of foaming agents developed have been granted national patents and passed ISO 9001 and ISO 14001.
Shuode has ten automatic polyurethane foam production lines, which are fully automated.
We have an independent laboratory to research more advanced high expansion polyurethane foam.
We have two large warehouses to store customers’spare parts and our own branded products.
We have more than 10 years of cooperative freight forwarders, the factory is only 4 hours away from Qingdao port in China, very convenient.
